15 Tons Omnidirectional Steering Wheel Transfer Cart

Name: 15 Tons Omnidirectional Steering Wheel Transfer Cart
Brand: Remarkabl
Price: 1 USD

Quality 15 Tons Omnidirectional Steering Wheel Transfer Cart for sale

Brand Name : Remarkabl

Model Number : KPX/RGV/RWP/AGV

Certification : ISO9001,ISO14001,ISO45001,CE

Place of Origin : china

MOQ : 1

Price : Negotiable

Payment Terms : T/T, L/C

Supply Ability : 500 sets/year

Delivery Time : 40 days

Packaging Details : The whole cart will be packed by the tarp, the parts will be packed by polywood case.

name : Transfer Trolley

key word : Transfer Cart,coil Transfer Trolley/battery transfer cart ,transfer trolley, industrial rail transfer cart, electric flatcar motorized equipment, battery powered material handling cart,rail transfer trollley

feature : High temperature resistance，explosion-proof，customized

Flat Size : U/V/roller/lifting/explosion-proof/high temperature/Customized

Load Capacity : 1-1000 tons

Material : Welded construction of structural steel，Box girder structure

Model : Explosion Proof Rail Transfer cart

Operation Mode : Remote Control/Handle remote control/Manual /PLC

Running Speed : 0-25m/min Stepless speed regulation/ Customized

Safety Device : Limit switch，RFID,Audible and visual alarm lamp and emergency stop button,Laser obstacle avoidance sensor

Warranty : 1 year

Wheel Material : steel wheel

Application : Industrial Filed, Building,military industry，steel/Metallurgical casting/Widely, Material or stock shuttle, Light and heavy industry, Workshop/factory etc

Contact Now

15 Tons Omnidirectional Steering Wheel Transfer Cart

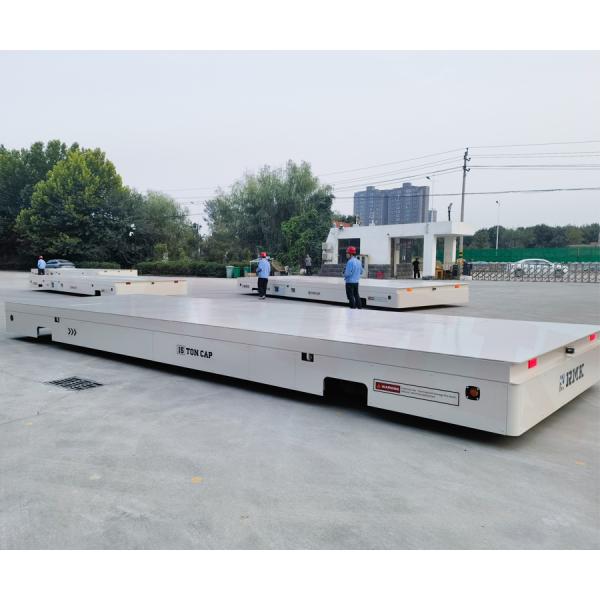

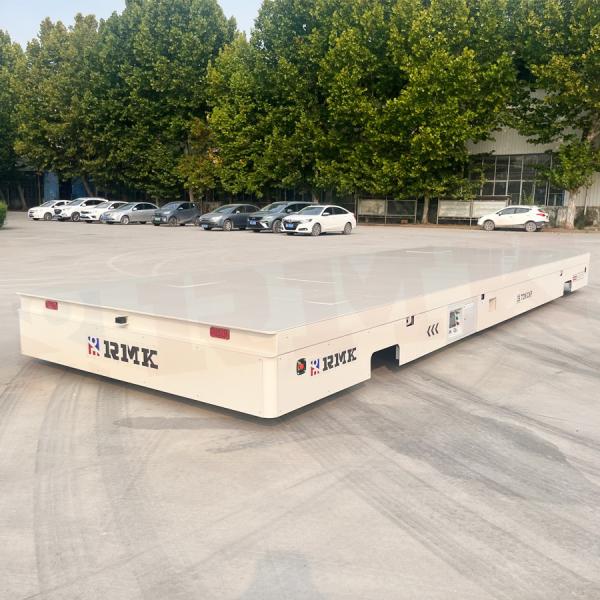

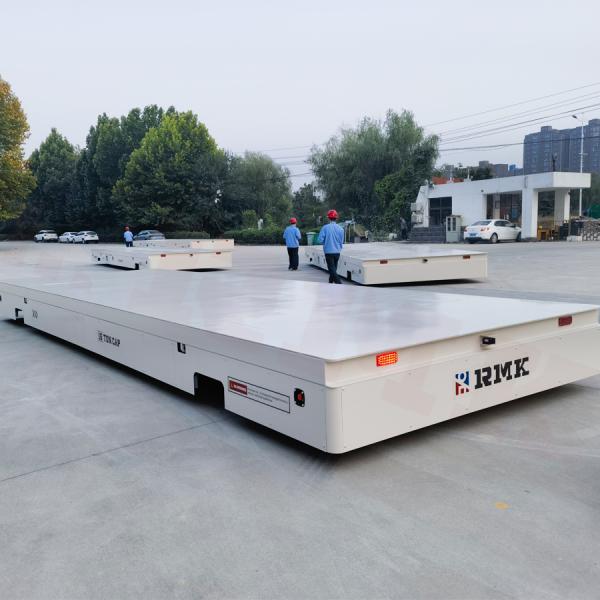

^{RMK 15 tons omnidirectional mobile steering wheel cart, exported to Bulgaria, with a maximum load capacity of 15 tons. The overall structure of the cart mainly consists of a frame, transmission device, walking device, protective device, onboard control box, and remote control device, and is powered by batteries. Flexible movement mode, capable of oblique, lateral, and in-situ rotation operations}

Specific dimensions:

^{Load capacity (t): 15}

^{Dimensions (mm): 9000 * 3000 (L * W)}

^{Power supply mode: battery}

^{Operation mode: With car handle control+wireless remote control}

Technical parameters for rail power transfer carts
Model		KPG-6t	KPG-10t	KPG-16t	KPG-25t	KPG-40t	KPG-63t	KPG-100t	KPG-160t	KPG-200t
Rated load (t)		6	10	16	25	40	63	100	160	200
Countertop size	Length	3600	3600	4000	4500	5000	5600	6300	8000	8200
(mm)	Width	2000	2000	2200	2200	2500	2500	2800	2800	3000
	Height	550	550	600	650	700	850	900	1100	1250
Speed(m/min)		30	30	30	30	25	25	20	20	18
Wheel base A(mm)		2000	2200	2200	2500	2800	3200	3600	5000	5000
Track medial distance C(mm)		1435	1435	1435	1435	1435	1435	1650	2000	2000
Wheel diameter(mm)		400	400	400	500	500	600	700	700	700
Bottom clearance(mm)		50	50	50	60	60	60	60	70	70
Minimum turning radius		30		35	50	55	60	80	100	100
Power mode		Battery/low-voltage rail/ Cable Drum/cable reels/Dragged Cable / busbar powered
Recommended track model		24kg/m			38kg/m	43kg/m		QU80	QU100
Number of wheels		4							8
Maximum wheel Pressure (t)		1.91	3.21	4.87	7.5	11.5	16.9	27.6	22.8	28.5
Reference weight (t)		3.4	3.72	4.2	6	8.5	11.4	15.2	25.5	31.5
